Galvanized H Steel

Galvanized H-beam is a cross-sectional area distribution is more optimized, more reasonable than the economic section of high-efficiency profiles, because of its section and the English letter "H" the same name. Since all parts of the H-beam are arranged at right angles, the H-beam has the advantages of strong bending resistance, simple construction, cost saving and light structure in all directions, and has been widely used.

Category：

H-Beams

+86-18865289140

Eda@sdsilkroadsteel.com

E-mail

Galvanized H Steel Description

Product Parameters

Material	A36, St37, S235J0, S235J2, St52, S355JR, Q195, Q215, Q235B, Q345B, S235JR, S355JR, S355, SS440, SM400A, SM400B, A572 GR50/GR60, SS540
Scope of Production	H100100-H400400, H15075 -H900300
Length	6m, 9m, 12m or acording to customer requirements
Technology	Hot Rolled, Welded
Standard	ASTM, AISI, JIS, GB, DIN, EN
Surface	Galvanized, Painted or according to your requirements
Supply Capacity	2000 tons/Day
Business Type	Manufacturer
Certificate	ISO, SGS, BV
Application	Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
Loading Port	Any port in China
Packaging	Standard export packing or as your request
Payment Method	Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.

American Sizes

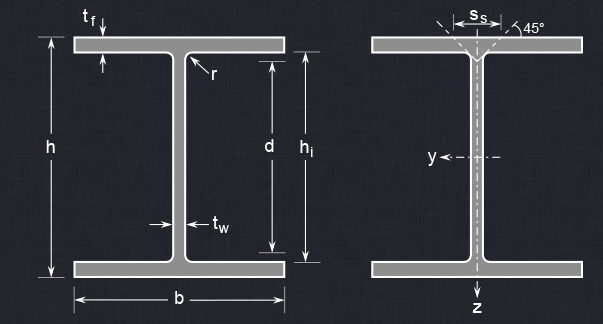

Description	lbs/ft	h in.	b in.	tw in.	tf in.
W 4x13.0	13	4.16	4.06	0.28	0.345
W 5x16.0	16	5.01	5	0.24	0.36
W 5x18.9	18.9	5	5.003	0.316	0.416
W 5x19.0	19	5.15	5.03	0.27	0.43
W 6x9.0	9	5.9	3.94	0.17	0.215
W 6x12.0	12	6.03	4	0.23	0.28
W 6x15.0	15	5.99	5.99	0.23	0.26
W 6x16.0	16	6.28	4.03	0.26	0.405
W 6x20.0	20	6.2	6.02	0.26	0.365
W 6x25.0	25	6.38	6.08	0.32	0.455
W 8x10.0	10	7.89	3.94	0.17	0.205
W 8x13.0	13	7.99	4	0.23	0.255
W 8x15.0	15	8.11	4.015	0.245	0.315
W 8x18.0	18	8.14	5.25	0.23	0.33
W 8x21.0	21	8.28	5.27	0.25	0.4
W 8x24.0	24	7.93	6.495	0.245	0.4
W 8x28.0	28	8.06	6.535	0.285	0.465
W 8x31.0	31	8	7.995	0.285	0.435
W 8x35.0	35	8.12	8.02	0.31	0.495
W 8x40.0	40	8.25	8.07	0.36	0.56
W 8x48.0	48	8.5	8.11	0.4	0.685
W 8x58.0	58	8.75	8.22	0.51	0.81
W 8x67.0	67	9	8.28	0.57	0.935
W 10x12.0	12	9.87	3.96	0.19	0.21
W 10x15.0	15	9.99	4	0.23	0.27
W 10x17.0	17	10.11	4.01	0.24	0.33
W 10x19.0	19	10.24	4.02	0.25	0.395
W 10x22.0	22	10.17	5.75	0.24	0.36
W 10x26.0	26	10.33	5.77	0.26	0.44
W 10x30.0	30	10.47	5.81	0.3	0.51
W 10x33.0	33	9.73	7.96	0.29	0.435
W 10x39.0	39	9.92	7.985	0.315	0.53
W 10x45.0	45	10.1	8.02	0.35	0.62
W 10x49.0	49	9.98	10	0.34	0.56
W 10x54.0	54	10.09	10.03	0.37	0.615
W 10x60.0	60	10.22	10.08	0.42	0.68
W 10x68.0	68	10.4	10.13	0.47	0.77
W 10x77.0	77	10.6	10.19	0.53	0.87
W 10x88.0	88	10.84	10.265	0.605	0.99
W 12x14.0	14	11.91	3.97	0.2	0.225
W 12x16.0	16	11.99	3.99	0.22	0.265
W 12x19.0	19	12.16	4.005	0.235	0.35
W 12x22.0	22	12.31	4.03	0.26	0.425
W 12x26.0	26	12.22	6.49	0.23	0.38
W 12x30.0	30	12.34	6.52	0.26	0.44
W 12x35.0	35	12.5	6.56	0.3	0.52
W 12x40.0	40	11.94	8.05	0.295	0.515
W 12x45.0	45	12.06	8.045	0.335	0.575
W 12x50.0	50	12.19	8.08	0.37	0.64
W 12x53.0	53	12.06	9.995	0.345	0.575
W 12x58.0	58	12.19	10.01	0.36	0.64
W 12x65.0	65	12.12	12	0.39	0.605
W 12x72.0	72	12.25	12.04	0.43	0.67
W 12x79.0	79	12.38	12.08	0.47	0.735
W 12x87.0	87	12.53	12.125	0.515	0.81
W 12x96.0	96	12.71	12.16	0.55	0.9
W 12x106.0	106	12.89	12.22	0.61	0.99
W 14x22.0	22	13.74	5	0.23	0.335
W 14x26.0	26	13.91	5.025	0.255	0.42
W 14x30.0	30	13.84	6.73	0.27	0.385
W 14x34.0	34	13.98	6.745	0.285	0.455
W 14x38.0	38	14.1	6.77	0.31	0.515
W 14x43.0	43	13.66	7.995	0.305	0.53
W 14x48.0	48	13.79	8.03	0.34	0.595
W 14x53.0	53	13.92	8.06	0.37	0.66
W 14x61.0	61	13.89	9.995	0.375	0.645
W 14x68.0	68	14.04	10.035	0.415	0.72
W 14x74.0	74	14.17	10.07	0.45	0.785
W 14x82.0	82	14.31	10.13	0.51	0.855
W 14x90.0	90	14.02	14.52	0.44	0.71
W 14x99.0	99	14.16	14.565	0.485	0.78
W 14x109.0	109	14.32	14.605	0.525	0.86
W 14x120.0	120	14.48	14.67	0.59	0.94
W 16x26.0	26	15.69	5.5	0.25	0.345
W 16x31.0	31	15.88	5.525	0.275	0.44
W 16x36.0	36	15.86	6.985	0.295	0.43
W 16x40.0	40	16.01	6.995	0.305	0.505
W 16x45.0	45	16.13	7.035	0.345	0.565
W 16x50.0	50	16.26	7.07	0.38	0.63
W 16x57.0	57	16.43	7.12	0.43	0.715
W 16x67.0	67	16.33	10.235	0.395	0.665
W 16x77.0	77	16.52	10.295	0.455	0.76
W 16x89.0	89	16.75	10.365	0.525	0.875
W 16x100.0	100	16.97	10.425	0.585	0.985
W 18x35.0	35	17.7	6	0.3	0.425
W 18x40.0	40	17.9	6.015	0.315	0.525
W 18x46.0	46	18.06	6.06	0.36	0.605
W 18x50.0	50	17.99	7.495	0.355	0.57
W 18x55.0	55	18.11	7.53	0.39	0.63
W 18x60.0	60	18.24	7.555	0.415	0.695
W 18x65.0	65	18.35	7.59	0.45	0.75
W 18x71.0	71	18.47	7.635	0.495	0.81
W 18x76.0	76	18.21	11.04	0.425	0.68
W 18x86.0	86	18.39	11.09	0.48	0.77
W 18x97.0	97	18.59	11.145	0.535	0.87
W 18x106.0	106	18.73	11.2	0.59	0.94
W 21x44.0	44	20.66	6.5	0.35	0.45
W 21x50.0	50	20.83	6.53	0.38	0.535
W 21x57.0	57	21.06	6.555	0.405	0.65
W 21x62.0	62	20.99	8.24	0.4	0.615
W 21x68.0	68	21.13	8.27	0.43	0.685
W 21x73.0	73	21.24	8.295	0.455	0.74
W 21x83.0	83	21.43	8.335	0.515	0.835
W 21x93.0	93	21.62	8.42	0.58	0.93
W 21x101.0	101	21.36	12.29	0.5	0.8
W 21x111.0	111	21.51	12.34	0.55	0.875
W 21x122.0	122	21.68	12.39	0.6	0.96
W 24x55.0	55	23.57	7.005	0.395	0.505
W 24x62.0	62	23.74	7.04	0.43	0.59
W 24x68.0	68	23.73	8.965	0.415	0.585
W 24x76.0	76	23.92	8.99	0.44	0.68
W 24x84.0	84	24.1	9.02	0.47	0.77
W 24x94.0	94	24.31	9.065	0.515	0.875
W 24x104.0	104	24.06	12.75	0.5	0.75
W 24x117.0	117	24.26	12.8	0.55	0.85
W 24x131.0	131	24.48	12.855	0.605	0.96

Asian Sizes

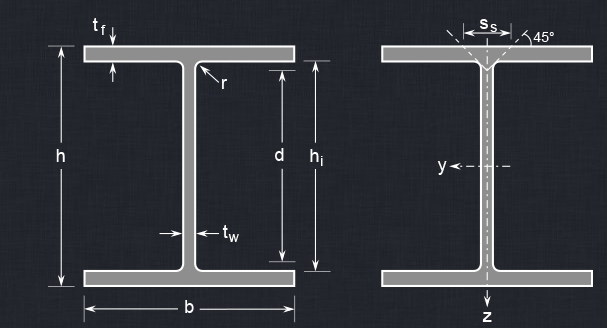

Description	G kg/m	h mm	b mm	tw mm	tf mm	r mm
100x50	9.1	100	50	5	7	2
100x100	14.7	100	100	5	7	2
100x100	16.9	100	100	6	8	2
125x60	12.9	125	60	6	8	2
125x125	23.6	125	125	6.5	9	2
150x75	13.9	150	75	5	7	2
150x100	20.7	148	100	6	9	2
150x150	31.3	150	150	7	10	2
150x150	37.3	154	151	8	12	2
175x90	17.9	175	90	5	8	2
175x125	23	175	125	5.5	8	2
175x175	32.4	171	174	6	9	2
175x175	40	175	175	7.5	11	2
200x100	17.7	198	99	4.5	7	2
200x100	20.9	200	100	5.5	8	2
200x150	30.1	194	150	6	9	2
200x150	36.5	198	151	7	11	2
200x200	41	196	199	6.5	10	2
200x200	49.7	200	200	8	12	2
200x200	57.7	204	201	9	14	2
200x200	65.8	208	202	10	16	2
250x125	25.2	248	124	5	8	2
250x125	29.2	250	125	6	9	2
250x175	43.3	244	175	7	11	2
250x175	50.8	248	176	8	13	2
250x175	58.5	252	177	9	15	2
250x250	66	248	249	8	13	2
250x250	72	250	250	9	14	2
250x250	98.3	260	253	12	19	2
300x150	24.4	294	148	4.5	6	2
300x150	31.5	298	149	5.5	8	2
300x150	36.3	300	150	6.5	9	2
300x150	41.1	304	150	6.5	11	2
300x150	45.9	306	151	7.5	12	2
300x150	69.2	318	154	11	18	2
300x200	47	290	199	7	10	2
300x200	55.7	294	200	8	12	2
300x200	64.5	298	201	9	14	2
300x200	76.6	304	202	10	17	2
300x300	86.4	298	299	9	14	2
300x300	93.6	300	300	10	15	2
300x300	105.7	304	301	11	17	2
300x300	125.1	310	303	13	20	2
300x300	130	310	305	15	20	2
300x300	147.4	312	310	20	21	2
350x175	40.8	346	174	6	9	2
350x175	49.2	350	175	7	11	2
350x175	57.6	354	176	8	13	2
350x175	66.1	358	177	9	15	2
350x175	71.8	360	178	10	16	2
350x175	79.9	364	177	11	18	2
350x350	114.1	344	348	10	16	2
350x350	136.4	350	350	12	19	2
400x200	56	396	199	7	11	2
400x200	65.6	400	200	8	13	2
400x200	75.2	404	201	9	15	2
400x200	88.1	410	202	10	18	2
400x300	92.8	386	299	9	14	2
400x300	105.5	390	300	10	16	2
400x300	126.2	396	302	12	19	2
400x400	139.5	388	402	15	15	2
400x400	146.2	394	398	11	18	2
400x400	171.7	400	400	13	21	2
450x200	65.2	446	199	8	12	2
450x200	75.2	450	200	9	14	2
450x200	88.5	456	201	10	17	2
450x200	98.6	460	202	11	19	2
450x200	109.6	460	205	14	19	2
450x300	104.1	434	299	10	15	2
450x300	122	440	300	11	18	2
450x300	143.5	446	302	13	21	2
500x200	78.3	496	199	9	14	2
500x200	88.7	500	200	10	16	3
500x200	102.4	506	201	11	19	4
500x200	116.2	512	202	12	22	5
500x300	112	482	300	11	15	6
500x300	126.5	488	300	11	18	7
500x300	148.9	494	302	13	21	8
600x200	77.8	592	197	8	13	9
600x200	93.7	596	199	10	15	10
600x200	105	600	200	11	17	11
600x200	119.6	606	201	12	20	12
600x300	135.4	582	300	12	17	13
600x300	150	588	300	12	20	14
600x300	174.1	594	302	14	23	15
